Alco-Sensor® VXL @Point Of Arrest

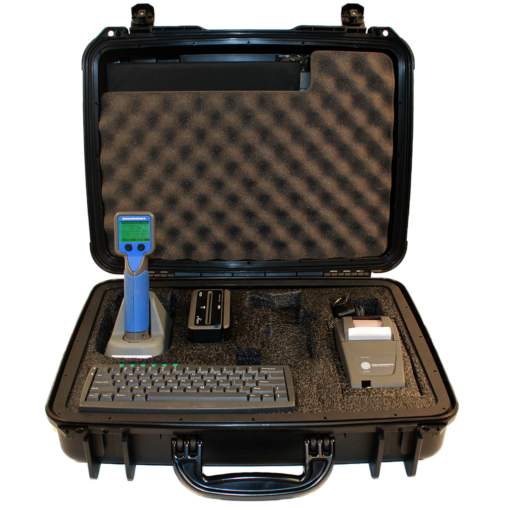

The Alco-Sensor® VXL @Point of Arrest (POA) package is a docking station, a keyboard and a printer (with optional magnetic card reader and/or 2D barcode or smart card reader) encased in a durable waterproof hard plastic carrying case.

The Alco-Sensor® VXL is programmed to prompt the operator through a step-by-step test sequence that allows data entry through a variety of input devices and produces a displayed, printed and stored to memory test record.

The instrument can be programmed to support a variety of different test protocols.  Off the shelf programs include standard law enforcement protocols.  Additionally, customized jurisdictional applications are available upon request.

ApprovalsNHTSAListed on the Conforming Products List for Evidential Breath Measurement Devices.
Analytical SystemElectrochemical Sensor (Fuel Cell)Select sensor, manufactured to Intoximeters exacting specifications for accuracy, repeatability and long life.
Measurement Range0.000 to 0.440 g/210LThe off the shelf instrument is designed to offer a range of results that our customers commonly encounter when performing breath alcohol testing.  Custom ranges, and results reported in most units of measure are available upon request.
Accuracy and PrecisionHighly accurate and precise evidential grade resultsIntoximeters fuel cell based instruments set the industry standard for accuracy and precision.  These precise and linear devices offer consistent output that results in evidentiary grade analysis.
Sensor SelectivityHighly specific for alcoholFuel Cell sensors are sought after for their specificity to alcohol.
Sampling MethodFlow, Volume, Breath DropInstruments running the standard software require a consistent flow, a minimum volume and then a drop in flow before sampling a deep lung breath.  Alternate sample capture algorithms are available in customized programs.
Testing EnvironmentInstrument TemperatureThe temperature of the instrument must be at, or between, 0 and 50 degrees C.
Ambient TemperatureAs long as the instrument is at temperature, the instrument can be used at, or between, ambient temperatures of -20  to 70 degrees C.
Humidity10% to 100% relative humidity  (The instrument is not designed to be used under water.)
Ambient Pressure600 mbar to 1400 mbar; 450 mmHg [0 °C] to 1050 in mmHg [0 °C]
MouthpieceStyleSplit Chamber with Air Flow Diversion
InstallationLever and set in the lighted mouthpiece guide
Data InputKeyboardThe instrument supports a full serial keyboard with 16 programmable function keys
On board scroll buttonsThe AS V instrument supports alpha-numeric data entry and drop down list item selection with two scroll buttons and a data entry button on the instrument
Visual OutputDisplayMulti-color backlit graphic LCD
LEDSide viewable LED indicates blow condition and warnings
Audio OutputBeeperAudible tone to support displayed messaging system
Data OutputPrinterSerial printer (thermal or impact options)
SerialWith optional serial docking station adapter, the AS V  can download stored test data serially and, with proper software, can communicate via serial modem or through a serial Ethernet adapter
Data StorageNumber of TestsMore than 7,000 test memory for a basic test record
Power Options(AS V) Disposable Battery4 x 1.5V AA alkaline batteries
(AS V) Rechargeable Battery4 x AA NiMH rechargeable cells
Printer BatteryDepending upon selected printer, a rechargeable NiMH or Li-Ion battery (comes with charger)
Printer 12V Power SourceOptional 12V cigarette adapter to charge printer
Keyboard Power2 x AAA batteries
Case ConstructionAS V case ABSRugged casing with rubber over-molding protects instrument and internal components
Plastic Carrying CaseThe Alco-Sensor V POA system is offered with a black Pelican 1470 waterproof hard carrying case
Nylon Carrying CaseOptionally, the instrument can be purchased in a light weight blue nylon carrying case which allows storage of additional dry gas calibration equipment
Size, Shape and WeightDimensions
Weight
Measurement TypesAutomatic Direct BreathAuto sampling of subjects’ deep lung breath samples
Manual Direct BreathManual sampling option for subjects who cannot meet the minimum flow and volume requirements of the instrument.
Passive TestingManual or automatic sampling capabilities for passive alcohol detection
Headspace SamplingCapable of measuring the headspace over a liquid to determine if alcohol might be present in the solution
SecurityPasswordConfigurable software allows password protection as an option
OptionsMagnetic Card ReaderExtech thermal printers are available with a three track magnetic card reader
2D BarcodeWith an Extech S2100T thermal printer, the 2D barcode option is available
BarometerOptional onboard barometer simplifies the use of dry gas standards
BluetoothAn optional Bluetooth module offers wireless communications to printers and computers
SoftwareBoth AS V Accelerator download software and IntoxNet interface
EthernetSerial to Ethernet adapters offer internet connectivity. Optionally, the AS V offers software that transmits encrypted data and thus provides security when sending test records over the public internet.
